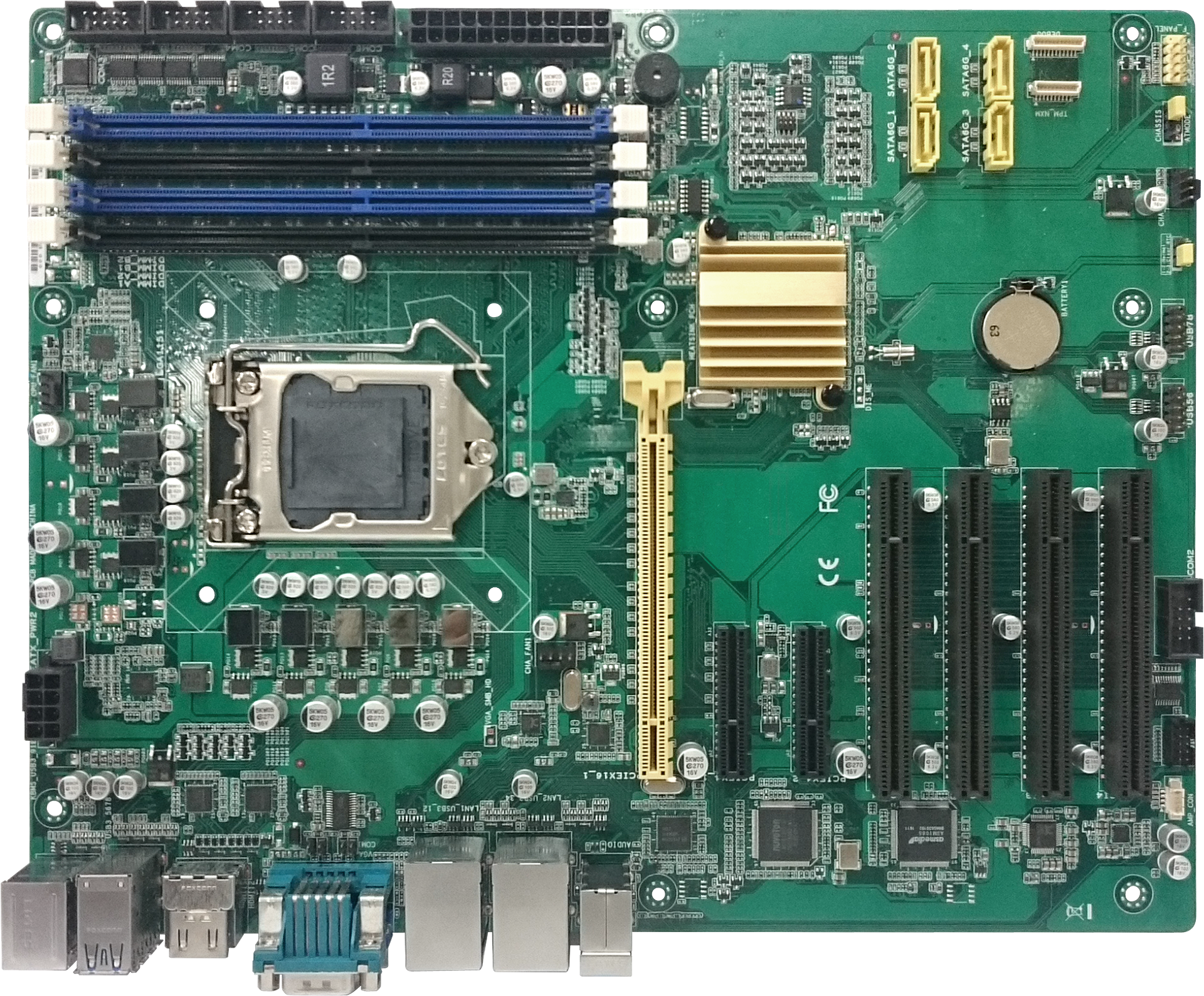

The NEX 912P is built to handle demanding industrial applications with ease. Powered by 7th/6th Gen Intel® Core™ i7/i5/i3, Pentium®, and Celeron® processors (LGA1151), and paired with the Intel® Q170 chipset, this ATX motherboard delivers exceptional computing capability. Supporting up to 64GB DDR4 2133/1867 MHz memory across four DIMM sockets, it ensures smooth multitasking and system responsiveness, even under heavy workloads. Whether you're building smart automation systems or edge computing platforms, the NEX 912P is ready to perform.
Designed for connectivity and flexibility, the NEX 912P features a rich I/O set including 10 x USB 3.2 Gen1, 4 x USB 2.0, 5 x RS232, 1 x RS232/422/485, and dual Intel® Gigabit LAN ports with Intel® AMT 12.0 support for remote system management. It supports triple independent displays via VGA and dual HDMI, making it ideal for applications like machine vision or multi-screen kiosks. The board also provides 4 x SATA 3.0 ports with RAID 0/1/5/10 support, ensuring reliable data storage and recovery.
Built for mission-critical deployment, the NEX 912P offers an 8-bit programmable DIO, watchdog timer, chassis intrusion detection, and dual fan headers for system monitoring and protection. With four PCI slots, two PCIe x4, and one PCIe x16 expansion slot, it easily integrates with legacy and modern add-on cards. Operating in temperatures from 0°C to 60°C and certified to CE/FCC Class A standards, this board is ideal for industrial automation, transportation systems, and rugged embedded environments.
