Next-Gen Performance, Built to Lead

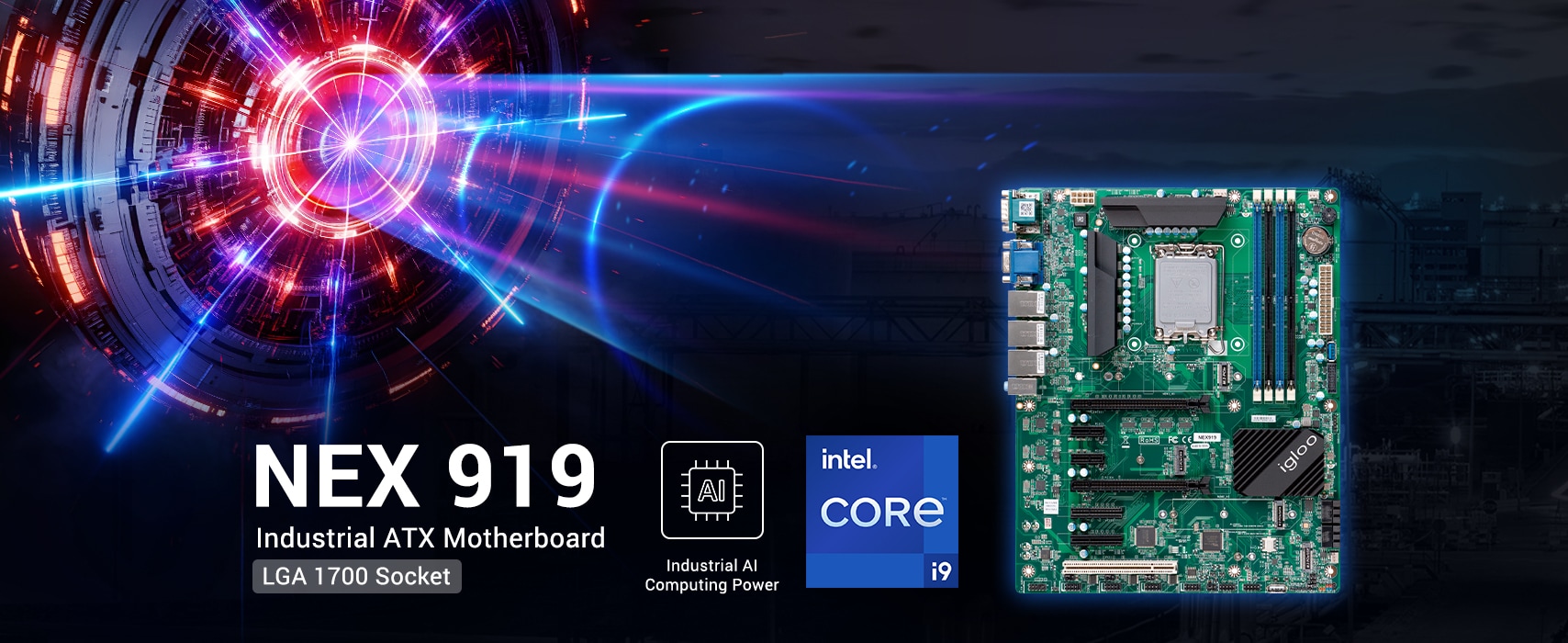

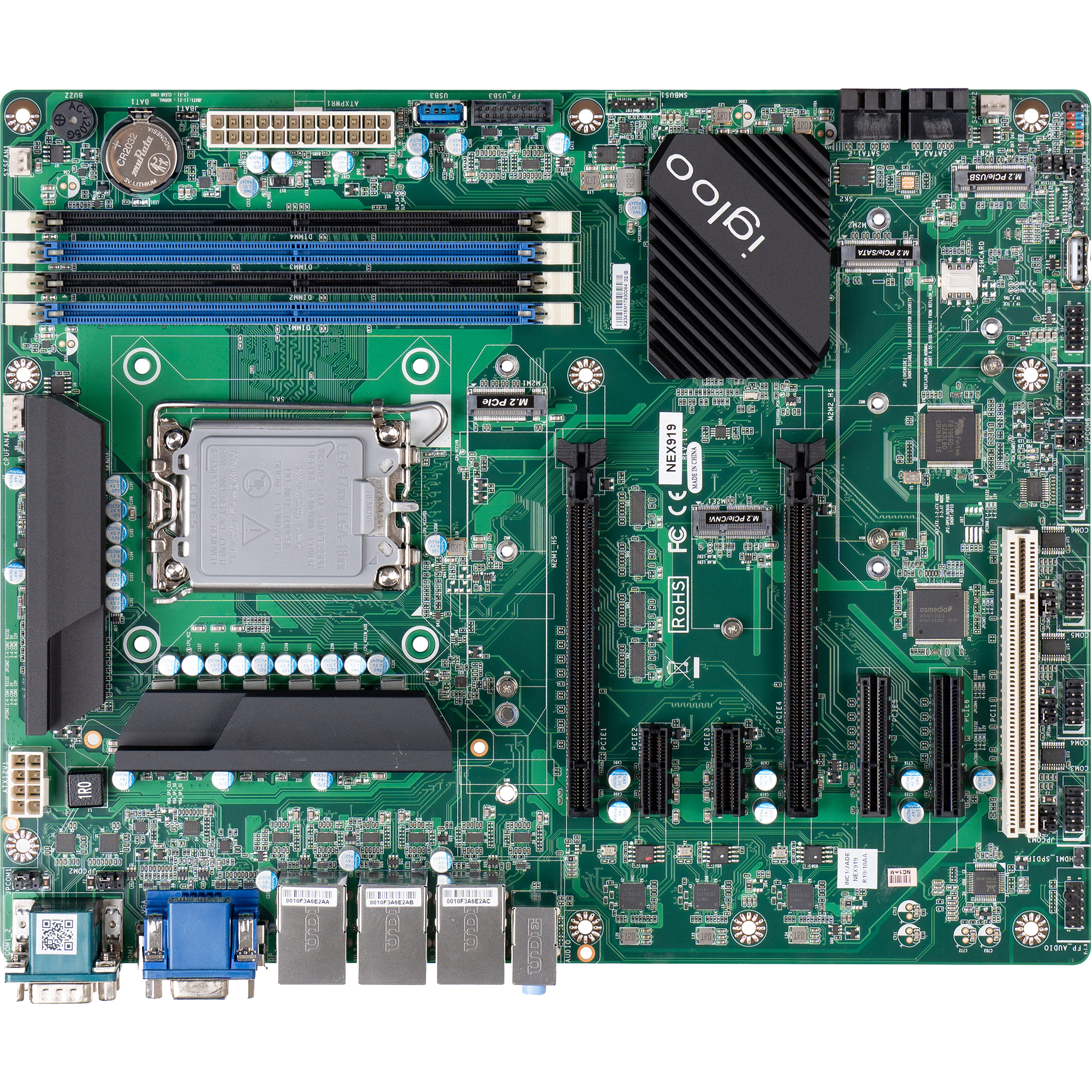

The NEX 919 is powered by the latest Intel® 14th/13th/12th Gen Core™ processors (LGA1700) with up to 125W TDP, making it ideal for high-performance industrial applications. Paired with the Intel® Q670E chipset and up to 128GB DDR5 4800MHz memory, this board delivers superior computing power and multitasking capability. Whether you’re running AI-driven automation, high-speed data processing, or edge computing workloads, the NEX 919 keeps you ahead of the curve.
Ultra-Connected, Highly Expandable

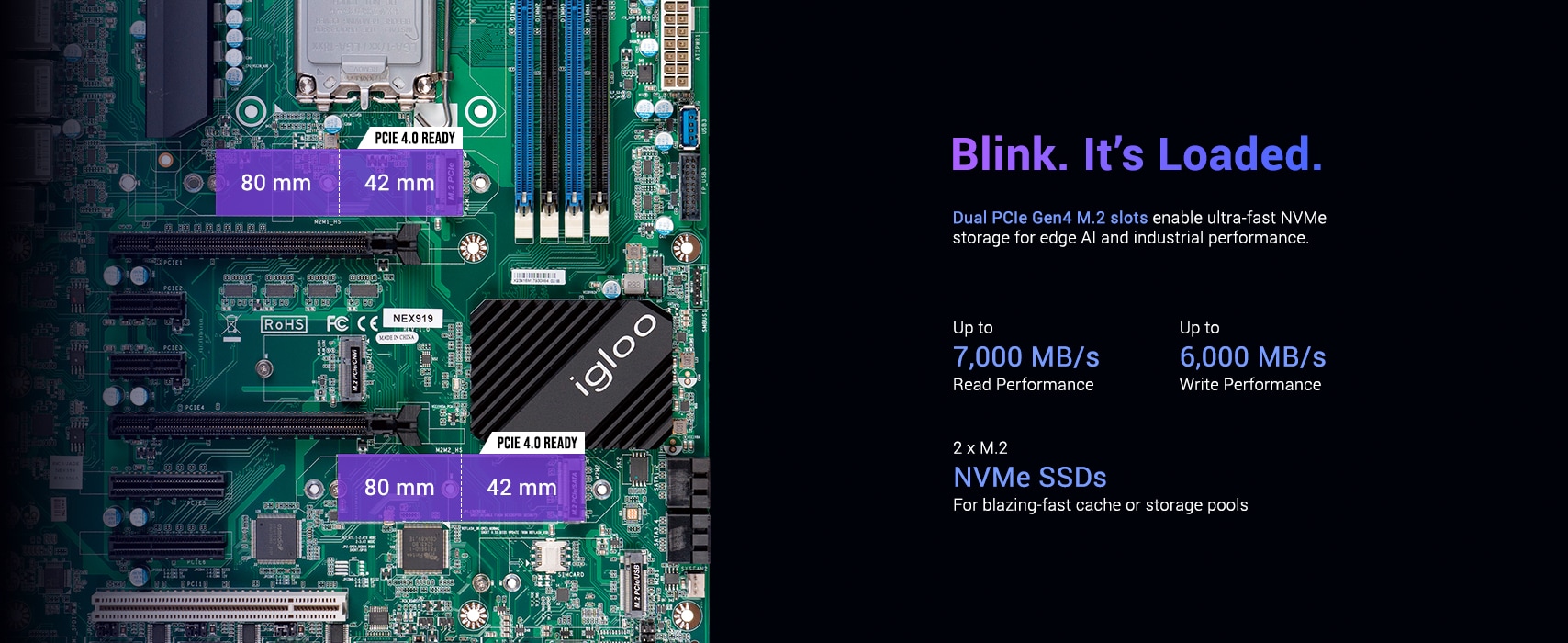

Designed for flexibility and scalability, the NEX 919 supports a wide range of expansion options including 2 x PCIe x16, 2 x PCIe x4, 2 x PCIe x1, and 1 x PCI legacy slot. It also features four M.2 slots supporting high-speed NVMe storage, Wi-Fi/BT modules, and even 4G/5G connectivity. Triple display output—HDMI 2.0b, DisplayPort 1.4a, and VGA—offers exceptional multimedia performance, while three 2.5GbE LAN ports ensure fast, stable networking in industrial environments.
Industrial-Grade Design for Real-World Reliability

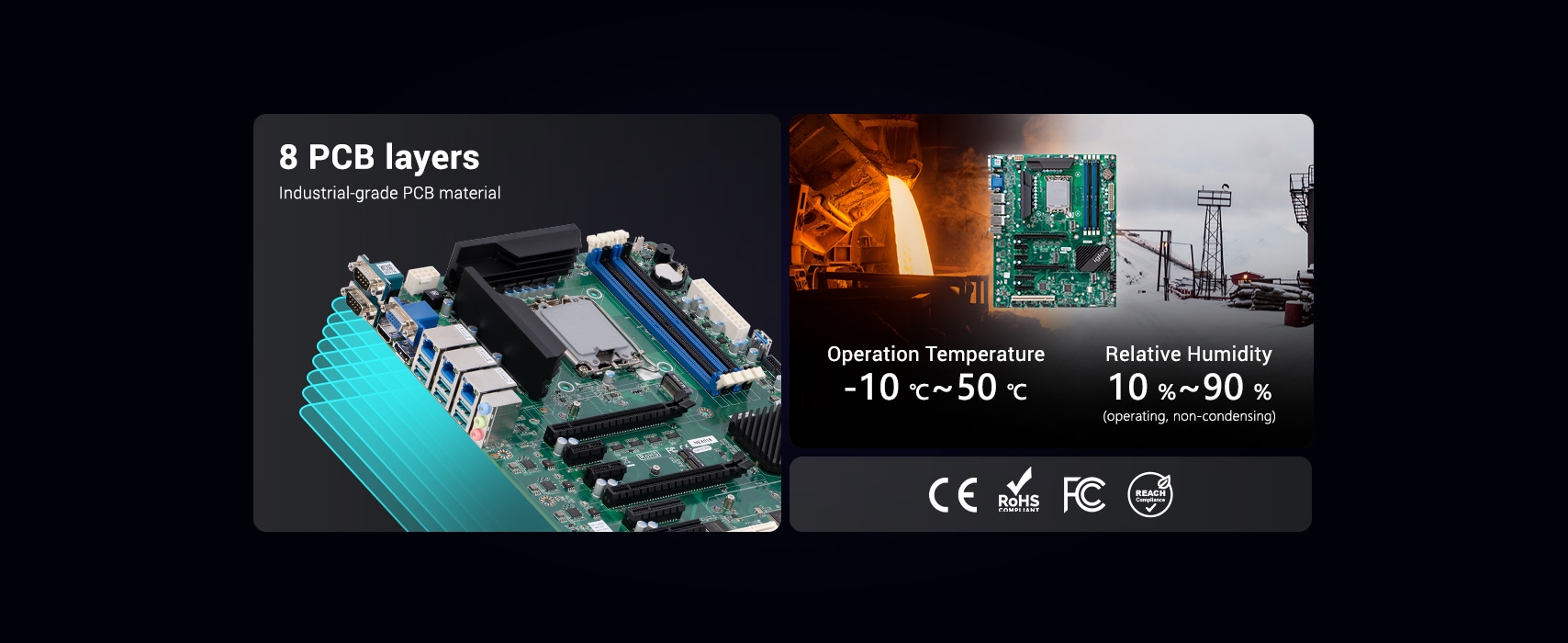

Built to withstand challenging environments, the NEX 919 supports wide temperature operation (-10°C to 50°C) and comes with features like Watchdog Timer, TPM 2.0, WDT, and 6 x COM ports (including 5V/12V and RS232/422/485 support). Multiple USB 3.2 Gen2 ports, HD Audio, and RAID support round out its industrial-grade I/O. With CE/FCC/RoHS/REACH certifications and compatibility with Windows 10/11 and Linux, this board is ready for deployment in automation, robotics, and edge AI solutions.
- Intel® 7th/6th Generation Intel® Core™ LGA1151 Socket Processor, PCH Q170
- 4 x U DIMM DDR4 with ECC or non-ECC SO DIMM 2133/1867 MHz up to 64GB
- Support triple display 2 x HDMI, VGA
- 2 x Intel® GbE LAN, 10 x USB 3.2 (Gen1), 4 x USB 2.0, 5 x RS232, 1 x RS232/485/422, 4 x SATA 3.0, PS/2 combo port, 8-bit GPIO, HD Audio.
- 1 x PCIe x16, 2 x PCie x4, 4 x PCI slots
